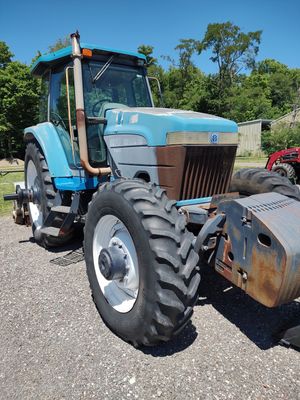

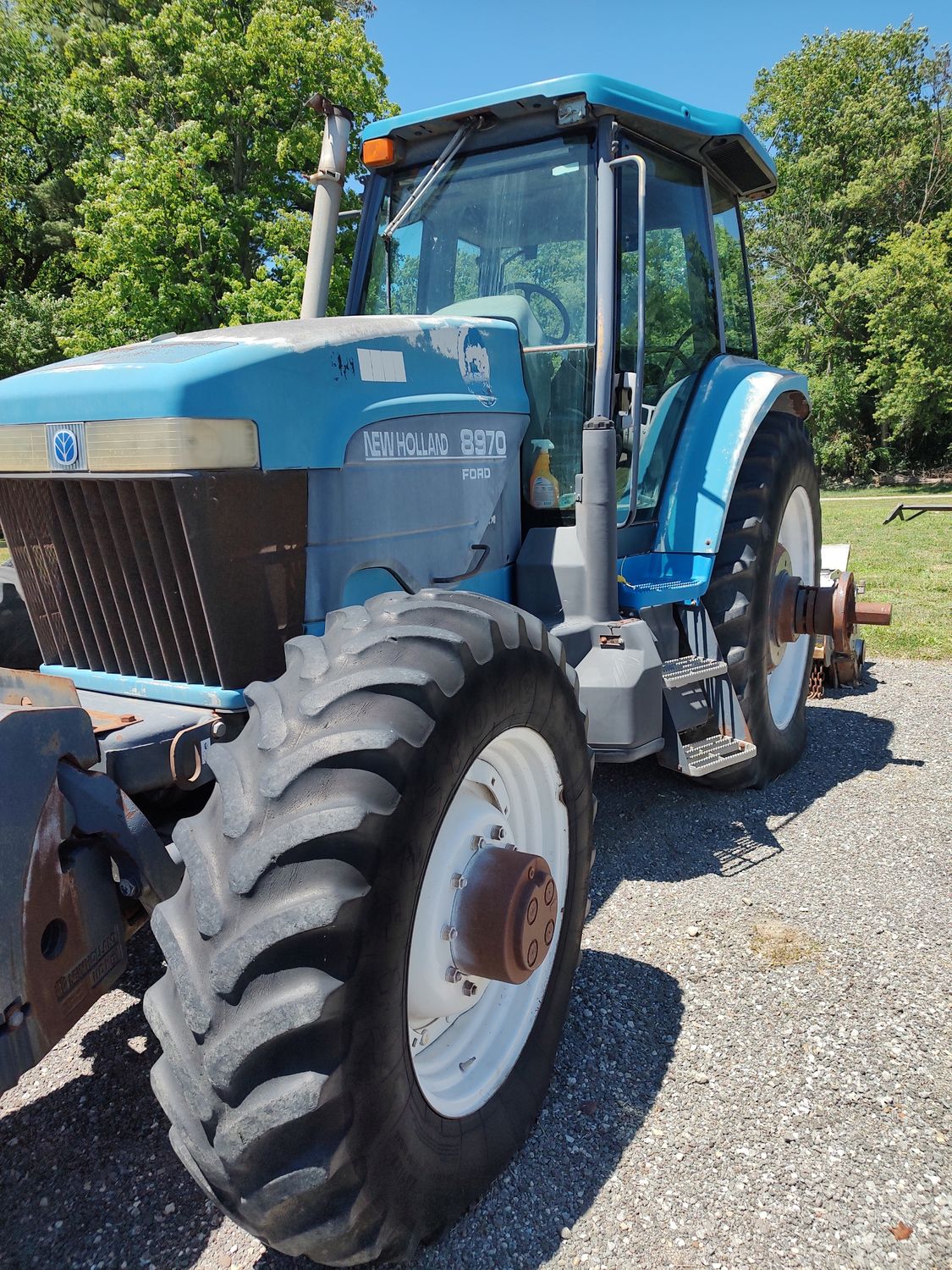

| New Holland 8970 Power - SUPERSTEER W/ FRONT WEIGHTS | |
| Engine: | 240 hp 179.0 kW |
| PTO (claimed): | 210 hp 156.6 kW |
| Drawbar (tested): | 189.5 hp 141.3 kW |
| PTO (tested): | 224.6 hp 167.5 kW |
|
|
|
| Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) |
|
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard |
| Transmissions: | 16-speed full power shift |
| Capacity | |
| Fuel: | 110 gal 416.4 L |
| Hydraulic system: | 36.9 gal 139.7 L |
| Front hubs: | 1.7 qts 1.6 L (each) |
| Front diff.: | 13 qts 12.3 L |
| Hydraulics REMOTE EXTERNAL STACK | |
| Type: | closed center load sensing |
| Capacity: | 36.9 gal139.7 L |
| Pressure: | 2750 psi189.6 bar |
| Valves: | 3 |
| Pump flow: | 24 gpm90.8 lpm |
| Total flow: | 31 gpm117.3 lpm |
| 55 gpm208.2 lpm (MegaFlow optional) | |
| Tractor hitch | |
| Rear Type: | III |
| Rear lift: | 15,000 lbs 6804 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
| DUALS W/ AXLES EXTENSIONS | |
| Wheelbase: | 118.3 inches 300 cm |
| Weight: | 16950 to 19350 pounds |
| Front tire: | 14L-16.1 |
| Rear tire: | 18.4R42 |
